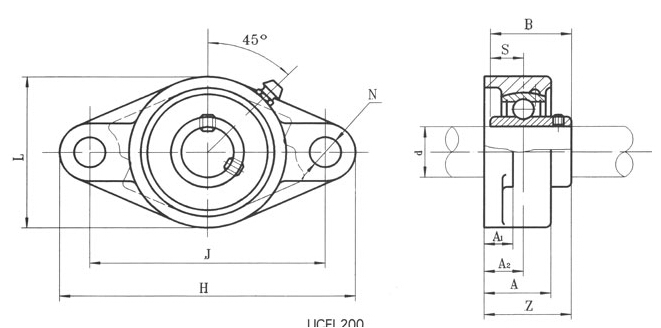

UCFL Series

>>

<<

Select	Inquiry	Part No.	Dimension（mm）											Bolt Dimension	Bearing Type	House Type	Weight (With House)
Select	Inquiry	Part No.	d	H	J	A2	A1	A	N	L	Z	B	S	Bolt Dimension	Bearing Type	House Type	(Kg)
		UCFL204	20	113	90	15	11	25.5	12	60	33.3	31	12.7	M10	UC204	FL204	0.5
		UCFL205	25	130	99	16	13	27	16	68	35.7	34.1	14.3	M14	UC205	FL205	0.6
		UCFL206	30	148	117	18	13	31	16	80	40.2	38.1	15.9	M14	UC206	FL206	0.9
		UCFL207	35	161	130	19	15	34	16	90	44.4	42.9	17.5	M14	UC207	FL207	1.2
		UCFL208	40	175	144	21	15	36	16	100	51.2	49.2	19	M14	UC208	FL208	1.6
		UCFL209	45	188	148	22	16	38	19	108	52.2	49.2	19	M16	UC209	FL209	1.9
		UCFL210	50	197	157	22	16	40	19	115	54.6	51.6	19	M16	UC210	FL210	2.2
		UCFL211	55	224	184	25	18	43	19	130	58.4	55.6	22.2	M16	UC211	FL211	3.1
		UCFL212	60	250	202	29	18	48	23	140	68.7	65.1	25.4	M20	UC212	FL212	4
		UCFL213	65	258	210	30	22	50	23	155	69.7	65.1	25.4	M20	UC213	FL213	5
		UCFL214	70	265	216	31	22	54	23	160	75.4	74.6	30.2	M20	UC214	FL214	5.6
		UCFL215	75	275	225	34	22	56	23	165	78.5	77.8	33.3	M20	UC215	FL215	6.2
		UCFL216	80	290	233	34	22	58	25	180	83.3	82.6	33.3	M22	UC216	FL216	8.2
		UCFL217	85	305	248	36	24	63	25	190	87.6	85.7	34.1	M22	UC217	FL217	9.3
		UCFL218	90	320	265	40	24	68	25	205	96.3	96	39.7	M22	UC218	FL218	11

>>

<<
