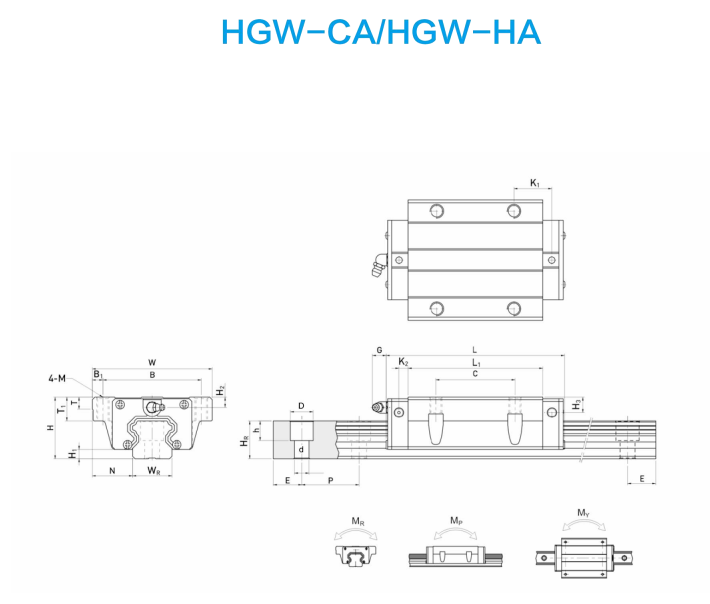

HGW-CA/HGW-HA
HGW-CA/HGW-HA
  • HGW-CA/HGW-HA
Download
Contact Us

HGW-CA/HGW-HA

>>
<<
SelectInquiryModel No.Dimensions of Assembly (mm)​ Dimensions of Block (mm)Dimensions of Rail (mm)​ Mounting Bolt for Rail (mm)Dynamic (kN)Static (kN)​ Static Rated MomentWeight
HH1NWBB1CL1LK1k2 G Mx1TH2H3WR HR DhdPFMR KN-mMP KN-mMY KN-m
HGW15CA​ 24 4.3 16 47 38 4.5 30 39.6 61.4 8 4.85 5.3 M5 6 3.95 3.7 15 15 7.5 5.3 4.5 60 20 M4×16 11.38 16.97 0.12 0.1 0.1 0.17
HGW20CA​ 30 4.6 21.5 63 53 5 40 50.5 77.5 10.25 6 12 M6 8 6 6 20 17.5 9.5 8.5 6 60 20 M5×16 17.75 27.76 0.27 0.2 0.2 0.4
HGW20HA​ 30 4.6 21.5 63 53 5 40 65.2 92.2 17.6 6 12 M6 8 6 6 20 17.5 9.5 8.5 6 60 20 M5×16 21.18 35.9 0.35 0.35 0.35 0.52
HGW25CA​ 36 5.5 23.5 70 57 6.5 45 58 84 10.7 6 12 M8 8 6 5 23 22 11 9 7 60 20 M6×20 26.48 36.49 0.42 0.33 0.33 0.59
HGW25HA​ 36 5.5 23.5 70 57 6.5 45 78.59999999999999 104.6 21 6 12 M8 8 6 5 23 22 11 9 7 60 20 M6×20 32.75 49.44 0.5600000000000001 0.57 0.57 0.8
HGW30CA​ 42 6 31 90 72 9 52 70 97.40000000000001 14.25 6 12 M10 8.5 6.5 10.8 28 26 14 12 9 80 20 M8×25 38.74 52.19 0.66 0.53 0.53 1.09
HGW30HA​ 42 6 31 90 72 9 52 93 120.4 25.75 6 12 M10 8.5 6.5 10.8 28 26 14 12 9 80 20 M8×25 42.27 69.16 0.88 0.92 0.92 1.44
HGW35CA​ 48 7.5 33 100 82 9 62 80 112.4 14.6 7 12.9 M10 10.1 9 12.6 34 29 14 12 9 80 20 M8×25 49.52 69.16 1.16 0.8100000000000001 0.8100000000000001 1.56
HGW35HA​ 48 7.5 33 100 82 9 62 105.8 138.2 27.5 7 12.9 M10 10.1 9 12.6 34 29 14 12 9 80 20 M8×25 60.21 91.63 2.54 1.4 1.4 2.06
HGW45CA​ 60 9.5 37.5 120 100 10 80 97 139.4 13 10 12.9 M12 15.1 8.5 20.5 45 38 20 17 14 105 22.5 M12x35 77.56999999999999 102.71 1.98 1.55 1.55 2.79
HGW45HA​ 60 9.5 37.5 120 100 10 80 128.8 171.2 28.9 10 12.9 M12 15.1 8.5 20.5 45 38 20 17 14 105 22.5 M12x35 94.54000000000001 136.46 2.63 2.68 2.68 3.69
HGW55CA​ 70 13 43.5 140 116 12 95 117.7 166.7 17.35 11 12.9 M14 17.5 12 19 53 44 23 20 16 120 30 M14x45 114.44 148.33 3.69 2.64 2.64 4.52
HGW55HA​ 70 13 43.5 140 116 12 95 155.8 204.8 36.4 11 12.9 M14 17.5 12 19 53 44 23 20 16 120 30 M14x45 139.35 196.2 4.88 4.57 4.57 5.96
HGW65CA​ 90 15 53.5 170 142 14 110 144.2 200.2 23.1 14 12.9 M16 25 15 15 63 53 26 22 18 150 35 M16x50 163.63 215.33 6.65 4.27 4.27 9.17
HGW65HA​ 90 15 53.5 170 142 14 110 203.6 259.6 52.8 14 12.9 M16 25 15 15 63 53 26 22 18 150 35 M16x50 208.36 303.13 9.380000000000001 7.38 7.38 12.89
>>
<<
