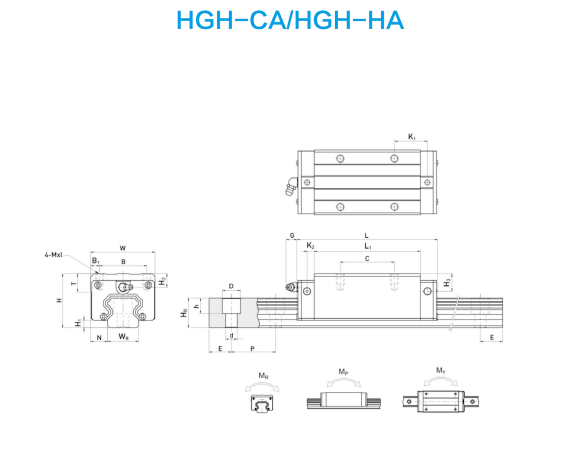

HGH-CA/HGH-HA

>>
<<
SelectInquiryModel No.Dimensions of Assembly (mm)​ Dimensions of Block (mm)Dimensions of Rail (mm)​ Mounting Bolt for Rail (mm)Dynamic (kN)Static (kN)​ Static Rated MomentWeight
HH1NWBB1CL1LK1k2 G Mx1TH2H3WR HR DhdPFMR KN-mMP KN-mMY KN-m
HGH15CA​ 28 4.3 9.5 34 26 4 26 39.4 61.4 10 4.85 5.3 M4×5 6 7.95 7.7 15 15 7.5 5.3 4.5 60 20 M4×16 11.38 16.97 0.12 0.1 0.1 0.18
HGH20CA​ 30 4.6 12 44 32 6 36 50.5 77.5 12.25 6 12 M5×6 8 6 6 20 17.5 9.5 8.5 6 60 20 M5×16 17.75 27.76 0.27 0.2 0.2 0.3
HGH20HA​ 30 4.6 12 44 32 6 50 65.2 92.2 12.6 6 12 M5×6 8 6 6 20 17.5 9.5 8.5 6 60 20 M5×16 21.18 35.9 0.35 0.35 0.35 0.39
HGH25CA​ 40 5.5 12.5 48 35 6.5 35 58 84 15.7 6 12 M6×8 8 10 9 23 22 11 9 7 60 20 M6×20 26.48 36.49 0.42 0.33 0.33 0.51
HGH25HA​ 40 5.5 12.5 48 35 6.5 50 78.59999999999999 104.6 18.5 6 12 M6×8 8 10 9 23 22 11 9 7 60 20 M6×20 32.75 49.44 0.5600000000000001 0.57 0.57 0.6899999999999999
HGH30CA​ 45 6 16 60 40 10 40 70 97.40000000000001 20.25 6 12 M8×10 8.5 9.5 13.8 28 26 14 12 9 80 20 M8×25 38.74 52.19 0.66 0.53 0.53 0.88
HGH30HA​ 45 6 16 60 40 10 60 93 120.4 21.75 6 12 M8×10 8.5 9.5 13.8 28 26 14 12 9 80 20 M8×25 42.27 69.16 0.88 0.92 0.92 1.16
HGH35CA​ 55 7.5 18 70 50 10 50 80 112.4 20.6 7 12.9 M8×12 10.2 16 19.6 34 29 14 12 9 80 20 M8×25 49.52 69.16 1.16 0.8100000000000001 0.8100000000000001 1.45
HGH35HA​ 55 7.5 18 70 50 10 72 105.8 138.2 2.5 7 12.9 M8×12 10.2 16 19.6 34 29 14 12 9 80 20 M8×25 60.21 91.63 2.54 1.4 1.4 1.92
HGH45CA​ 70 9.5 20.5 86 60 13 60 97 139.4 23 10 12.9 M10x17 16 18.5 30.5 45 38 20 17 14 105 22.5 M12x35 77.56999999999999 102.71 1.98 1.55 1.55 2.73
HGH45HA​ 70 9.5 20.5 86 60 13 80 128.8 171.2 28.9 10 12.9 M10x17 16 18.5 30.5 45 38 20 17 14 105 22.5 M12x35 94.54000000000001 136.46 2.63 2.68 2.68 3.61
HGH55CA​ 80 13 23.5 100 75 12.5 75 117.7 166.7 27.35 11 12.9 M12x18 17.5 22 29 53 44 23 20 16 120 30 M14x45 114.44 148.33 3.69 2.64 2.64 4.17
HGH55HA​ 80 13 23.5 100 75 12.5 95 155.8 204.8 36.4 11 12.9 M12x18 17.5 22 29 53 44 23 20 16 120 30 M14x45 139.35 196.2 4.88 4.57 4.57 5.49
HGH65CA​ 90 15 31.5 126 76 25 70 144.2 200.2 43.1 14 12.9 M16x20 25 15 15 63 53 26 22 18 150 35 M16x50 163.63 215.33 6.65 4.27 4.27 7
HGH65HA​ 90 15 31.5 126 76 25 120 203.6 259.6 47.8 14 12.9 M16x20 25 15 15 63 53 26 22 18 150 35 M16x50 208.36 303.13 9.380000000000001 7.38 7.38 9.82
>>
<<
