63 Series

Versions of miniature ball bearings

Single row

Main dimensions according to DIN 625-1. Inside diameter below 10 mm. Economical "all-round bearing". Versatile.

Miniature flanged housing units

For simplified locating bores in which the bearing is supposed to be axially fixed. Inside diameter below 10 mm.


>>
<<

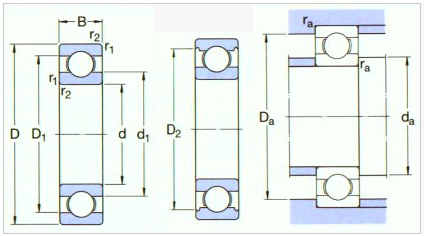

SelectInquiryDesignationPrincipal dimensions(mm)Basic load ratings(N)Basic load ratings{kgf} Speed ratings(rpm) Abutment and fillet dimensions (mm)Weight(g)
With shiledOpen typeWith seal VVWith seal DDdDBB1r(min)CrCorCrCorGreaseOil da(min)db(max)Da(Max)Db(min)ra(max)rb(max)Open typeWith shiled
ZZD·DZ
633 633ZZ - - 3 13 5 5 0.2 1300 485 133 49 40000 - 48000 4.6 6 11.4 11.3 0.2 0.2 3.38 3.33
634 634ZZ1 - - 4 16 5 5 0.3 1730 670 177 68 36000 - 43000 6 7.5 14 13.8 0.3 0.3 5.24 5.21
635 635ZZ1 635VV 635DD 5 19 6 6 0.3 2340 885 238 90 32000 30000 40000 7 8.5 17 16.5 0.3 0.3 8.56 8.34
636 636ZZ 636VV 636DD 6 22 7 7 0.3 3300 1370 335 140 30000 28000 36000 8 10.5 20 19 0.3 0.3 14 14
637 637ZZ1 637VV 637DD 7 26 9 9 0.3 4550 1970 465 201 28000 22000 34000 9 12.8 24 22.8 0.3 0.3 24 25
638 638ZZ1 638VV 638DD 8 28 9 9 0.3 4550 1970 465 201 28000 22000 34000 10 12.8 26 22.8 0.3 0.3 28.3 28.6
639 639ZZ 639VV - 9 30 10 10 0.6 5100 2390 520 244 24000 - 30000 13 16.1 26 25.6 0.6 0.6 36.5 36
>>
<<
